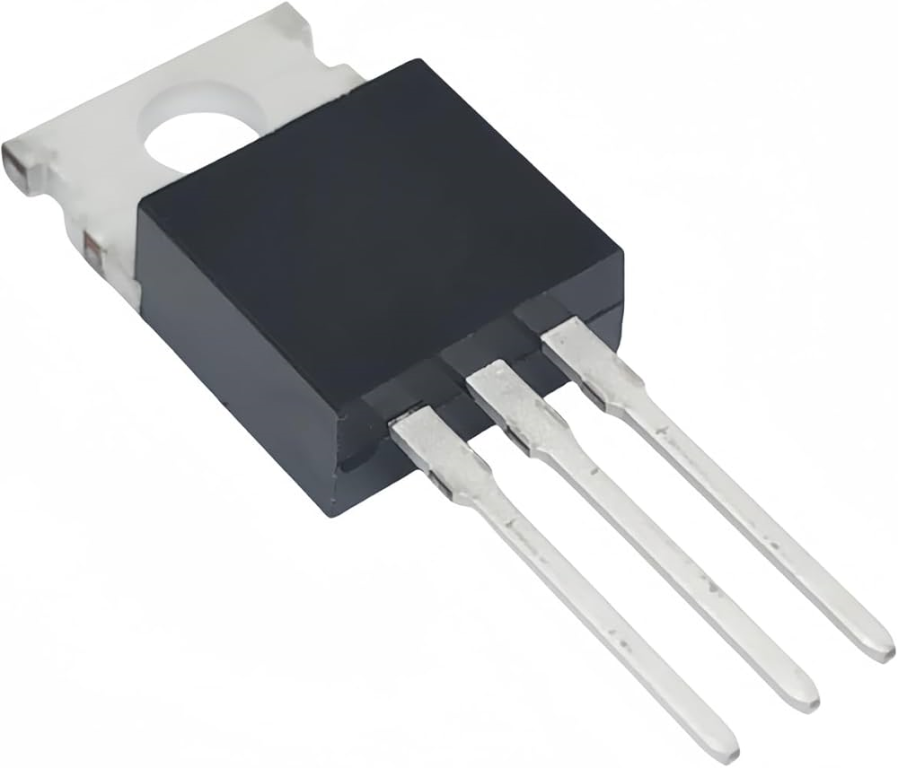

2SK3069 MOSFET N-CHANNEL TO220

Codice	35362
Contattare il punto vendita o WhatsApp 3665629832

Condividi Condividi Copia link

Type Designator: 2SK3069
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
Absolute Maximum Ratings

   Pd ? - Maximum Power Dissipation: 100 W
   |Vds|? - Maximum Drain-Source Voltage: 60 V
   |Vgs|? - Maximum Gate-Source Voltage: 20 V
   |Id| ? - Maximum Drain Current: 75 A
   Tj ? - Maximum Junction Temperature: 150 °C
Electrical Characteristics

   |Vgs(off)|? - Minimum Gate-to-Source Cutoff Voltage: 1 V
   Qg ? - Total Gate Charge: 125 nC
   tr ? - Rise Time: 300 nS
   Coss? - Output Capacitance: 1000 pF
   Rds ? - Maximum Drain-Source On-State Resistance: 0.0075 Ohm
   Package: TO220AB
