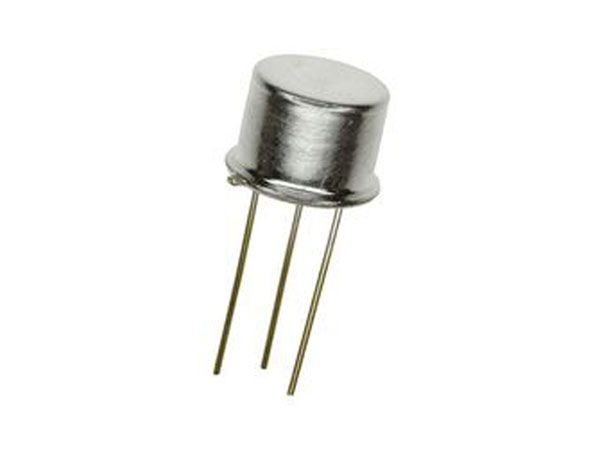

BD115 TRANSISTOR BJT NPN TO39

Codice	35090
Contattare il punto vendita o WhatsApp 3665629832

Condividi Condividi Copia link

Type Designator: BD115
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 6 W
   Maximum Collector-Base Voltage |Vcb|: 245 V
   Maximum Collector-Emitter Voltage |Vce|: 180 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.15 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Transition Frequency (ft): 80 MHz
   Forward Current Transfer Ratio (hFE), MIN: 22
   Noise Figure, dB: -
   Package: TO39
