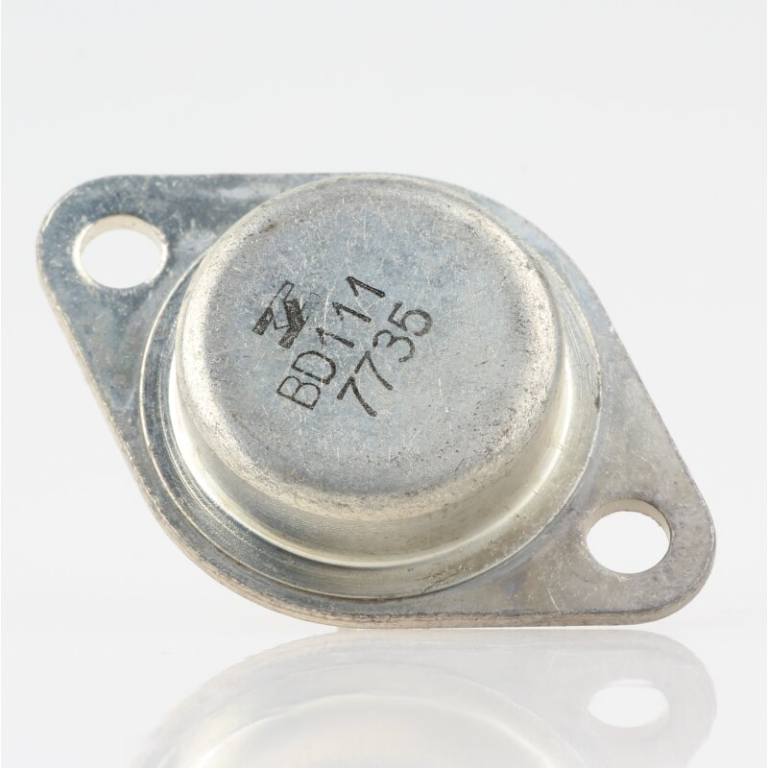

BD111 TRANSISTOR BJT NPN TO3

Codice	35088
Contattare il punto vendita o WhatsApp 3665629832

Condividi Condividi Copia link

Type Designator: BD111
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 15 W
   Maximum Collector-Base Voltage |Vcb|: 60 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 60 MHz
   Forward Current Transfer Ratio (hFE), MIN: 40
   Noise Figure, dB: -
   Package: TO3
