Material of Transistor: Si
Polarity: PNP
Absolute Maximum Ratings
Maximum Collector Power Dissipation (Pc): 200 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Collector-Emitter Voltage |Vce|: 200 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 17 A
Max. Operating Junction Temperature (Tj): 150 °C
Electrical Characteristics
Transition Frequency (ft): 20 MHz
Collector Capacitance (Cc): 500 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Noise Figure, dB: -

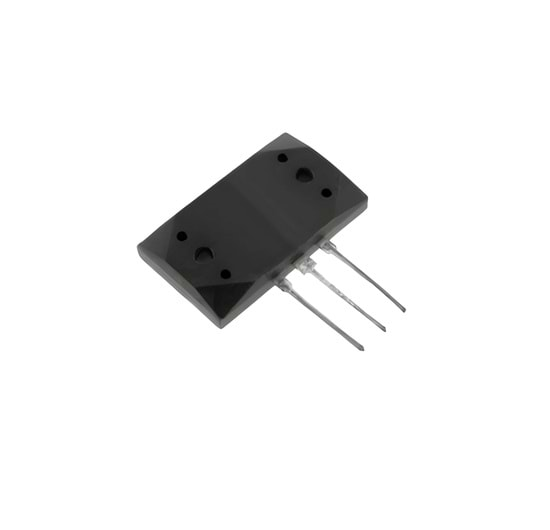

Package: MT200
