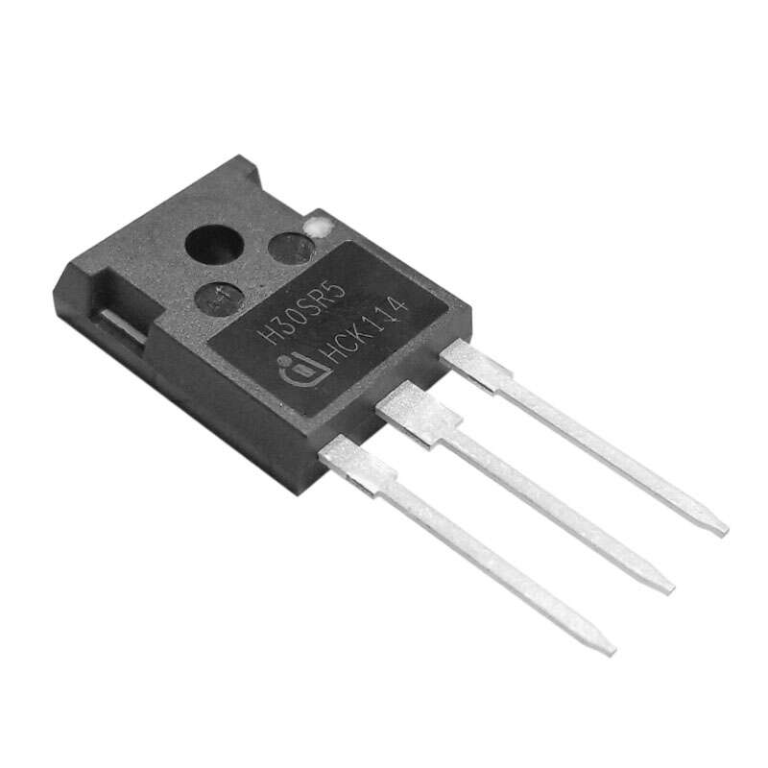

Type Designator: H30SR5
Type: IGBT + Anti-Parallel Diode
Marking Code: H30SR5
Type of IGBT Channel: N
Absolute Maximum Ratings
Pc ? - Maximum Power Dissipation: 263 W
|Vce|? - Maximum Collector-Emitter Voltage: 1600 V
|Vge|? - Maximum Gate-Emitter Voltage: 20 V
|Ic| ? - Maximum Collector Current: 60 A @25?
Tj ? - Maximum Junction Temperature: 175 ?
Electrical Characteristics
|VCEsat|? - Collector-Emitter saturation Voltage, typ: 1.85 V @25?
|VGEth|? - Maximum G-E Threshold Voltag: 5.8 V
Coes? - Output Capacitance, typ: 42 pF
Qg ? - Total Gate Charge, typ: 205 nC
Package: TO247
