Type Designator: STW7NK90Z
Marking Code: W7NK90Z
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ? - Maximum Power Dissipation: 140 W
|Vds|? - Maximum Drain-Source Voltage: 900 V
|Vgs|? - Maximum Gate-Source Voltage: 30 V
|Id| ? - Maximum Drain Current: 5.8 A
Tj ? - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|? - Maximum Gate-Threshold Voltage: 4.5 V
Qg ? - Total Gate Charge: 46.5 nC
tr ? - Rise Time: 45 nS
Coss? - Output Capacitance: 130 pF
RDSon? - Maximum Drain-Source On-State Resistance: 2 Ohm

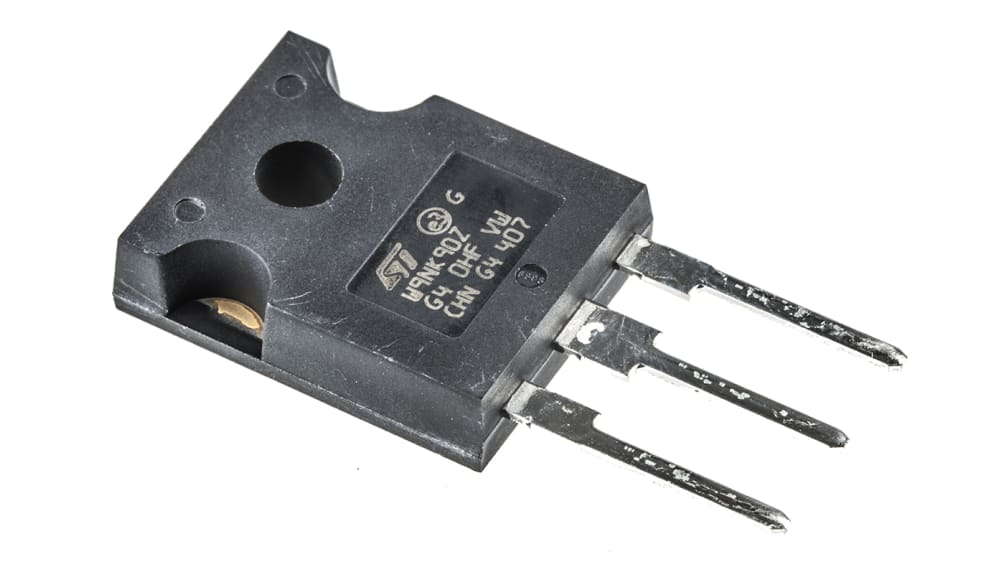

Package: TO247
