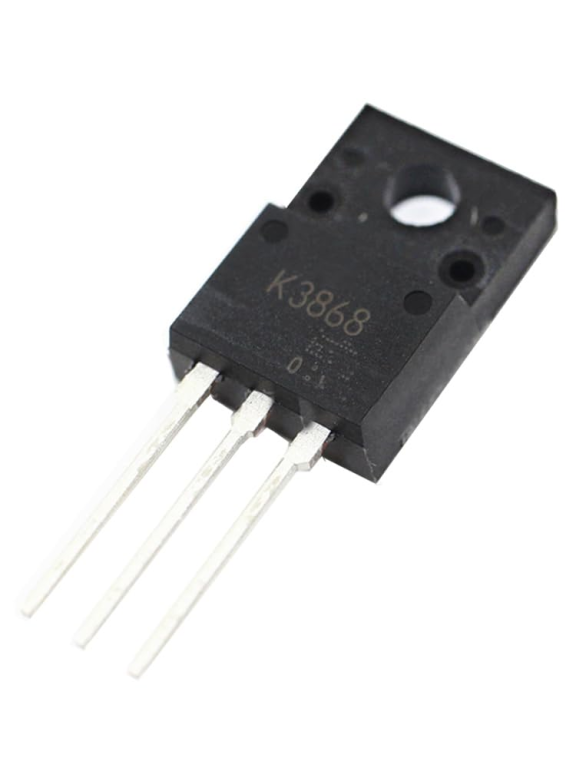

Type Designator: 2SK3868 ????
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ? - Maximum Power Dissipation: 35 W
|Vds|? - Maximum Drain-Source Voltage: 500 V
|Vgs|? - Maximum Gate-Source Voltage: 30 V
|Id| ? - Maximum Drain Current: 5 A
Tj ? - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|? - Maximum Gate-Threshold Voltage: 4 V
Qg ? - Total Gate Charge: 16 nC
tr ? - Rise Time: 10 nS
Coss? - Output Capacitance: 70 pF
RDSon? - Maximum Drain-Source On-State Resistance: 1.3 Ohm
Package: SC67
