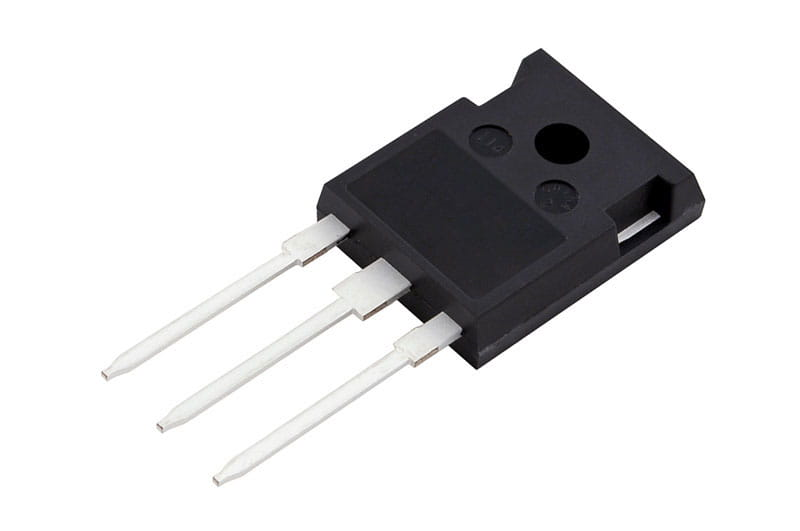

2SC4278 TRANSISTOR BJT NPN TO247

Codice	35351
Contattare il punto vendita o WhatsApp 3665629832

Condividi Condividi Copia link

Type Designator: 2SC4278
   Material of Transistor: Si
   Polarity: NPN
Absolute Maximum Ratings

   Maximum Collector Power Dissipation (Pc): 100 W
   Maximum Collector-Base Voltage |Vcb|: 150 V
   Maximum Collector-Emitter Voltage |Vce|: 150 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 150 °C
Electrical Characteristics

   Transition Frequency (ft): 30 MHz
   Forward Current Transfer Ratio (hFE), MIN: 50
   Noise Figure, dB: -
   Package: TO247
