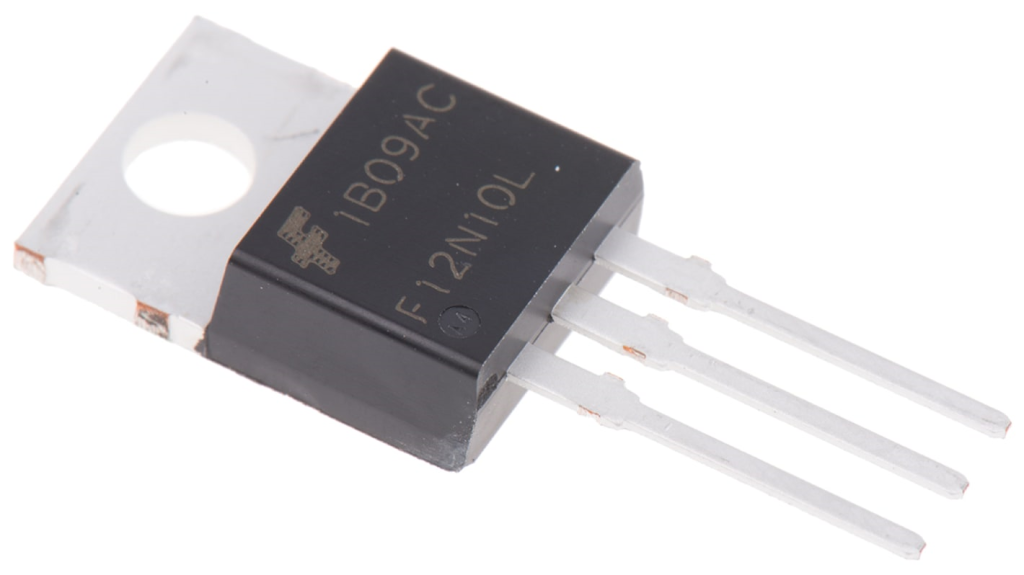

RFP12N10L MOSFET N-CHANNEL TO220

Codice	35244
Contattare il punto vendita o WhatsApp 3665629832

Condividi Condividi Copia link

Type Designator: RFP12N10L
   Marking Code: F12N10L
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ? - Maximum Power Dissipation: 60 W
   |Vds|? - Maximum Drain-Source Voltage: 100 V
   |Vgs|? - Maximum Gate-Source Voltage: 10 V
   |Vgs(th)|? - Maximum Gate-Threshold Voltage: 2 V
   |Id| ? - Maximum Drain Current: 12 A
   Tj ? - Maximum Junction Temperature: 150 °C
   tr ? - Rise Time: 70 nS
   Coss? - Output Capacitance: 325(max) pF
   Rds ? - Maximum Drain-Source On-State Resistance: 0.2 Ohm
   Package: TO220AB
