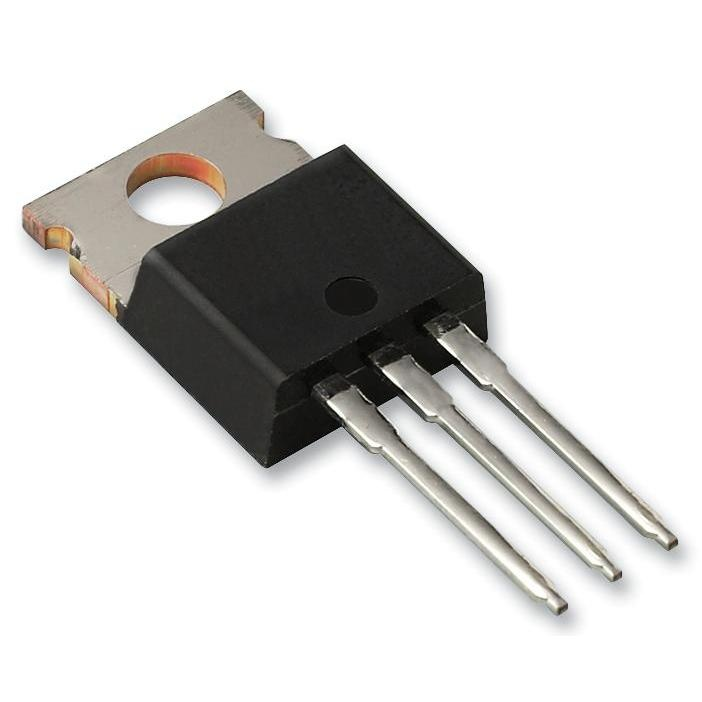

IRL530 MOSFET N-CHANNEL TO220

Codice	35240
Contattare il punto vendita o WhatsApp 3665629832

Condividi Condividi Copia link

Type Designator: IRL530
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ? - Maximum Power Dissipation: 88 W
   |Vds|? - Maximum Drain-Source Voltage: 100 V
   |Vgs|? - Maximum Gate-Source Voltage: 10 V
   |Vgs(th)|? - Maximum Gate-Threshold Voltage: 2 V
   |Id| ? - Maximum Drain Current: 15 A
   Tj ? - Maximum Junction Temperature: 175 °C
   Qg ? - Total Gate Charge: 28(max) nC
   tr ? - Rise Time: 100 nS
   Coss? - Output Capacitance: 250 pF
   Rds ? - Maximum Drain-Source On-State Resistance: 0.16 Ohm
   Package: TO220
