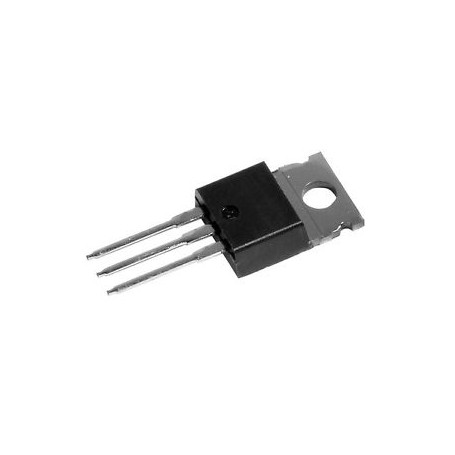

BD223 TRANSISTOR BJT PNP TO220

Codice	35139
Contattare il punto vendita o WhatsApp 3665629832

Condividi Condividi Copia link

Type Designator: BD223
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 36 W
   Maximum Collector-Base Voltage |Vcb|: 80 V
   Maximum Collector-Emitter Voltage |Vce|: 70 V
   Maximum Collector Current |Ic max|: 4 A
   Max. Operating Junction Temperature (Tj): 130 °C
   Transition Frequency (ft): 0.8 MHz
   Forward Current Transfer Ratio (hFE), MIN: 30
   Noise Figure, dB: -
   Package: TO220
