Type Designator: BD119
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Collector-Emitter Voltage |Vce|: 300 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 165 °C
Transition Frequency (ft): 70 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Noise Figure, dB: -

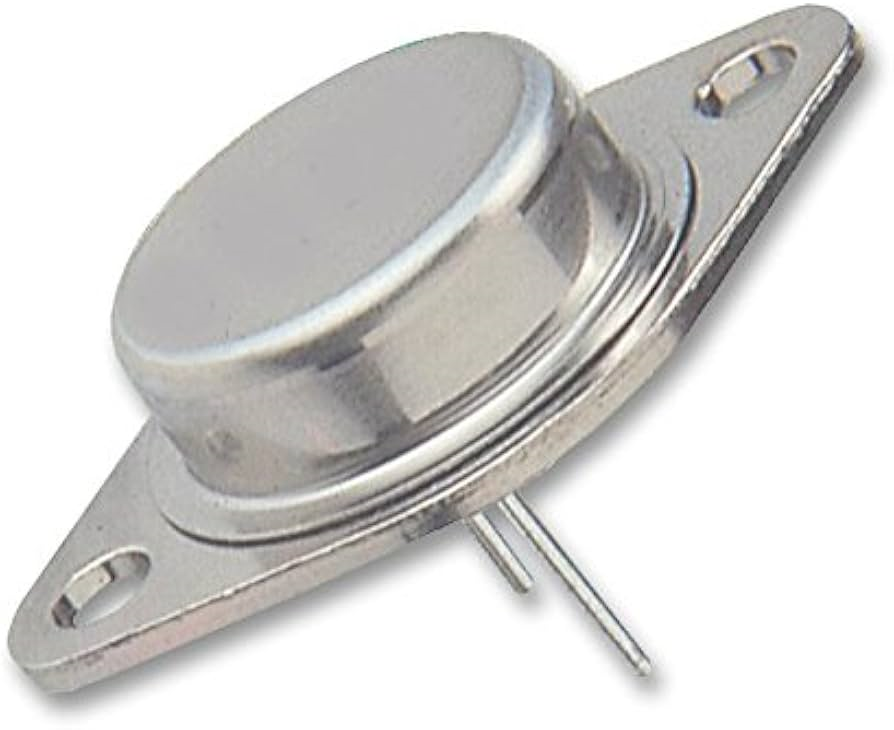

Package: TO66
